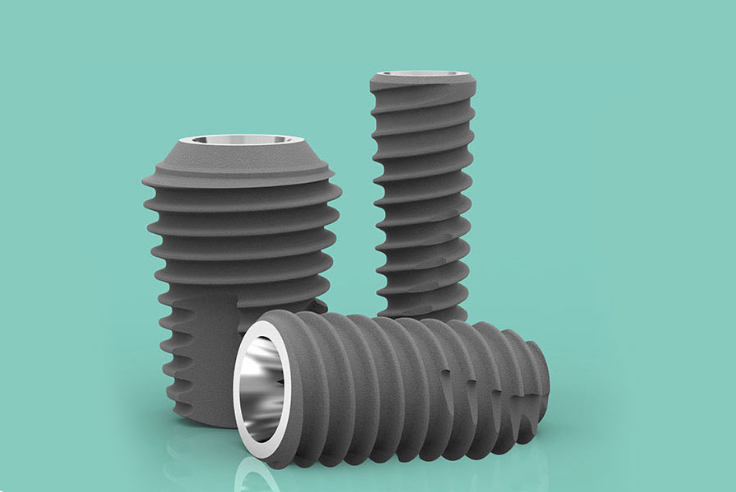

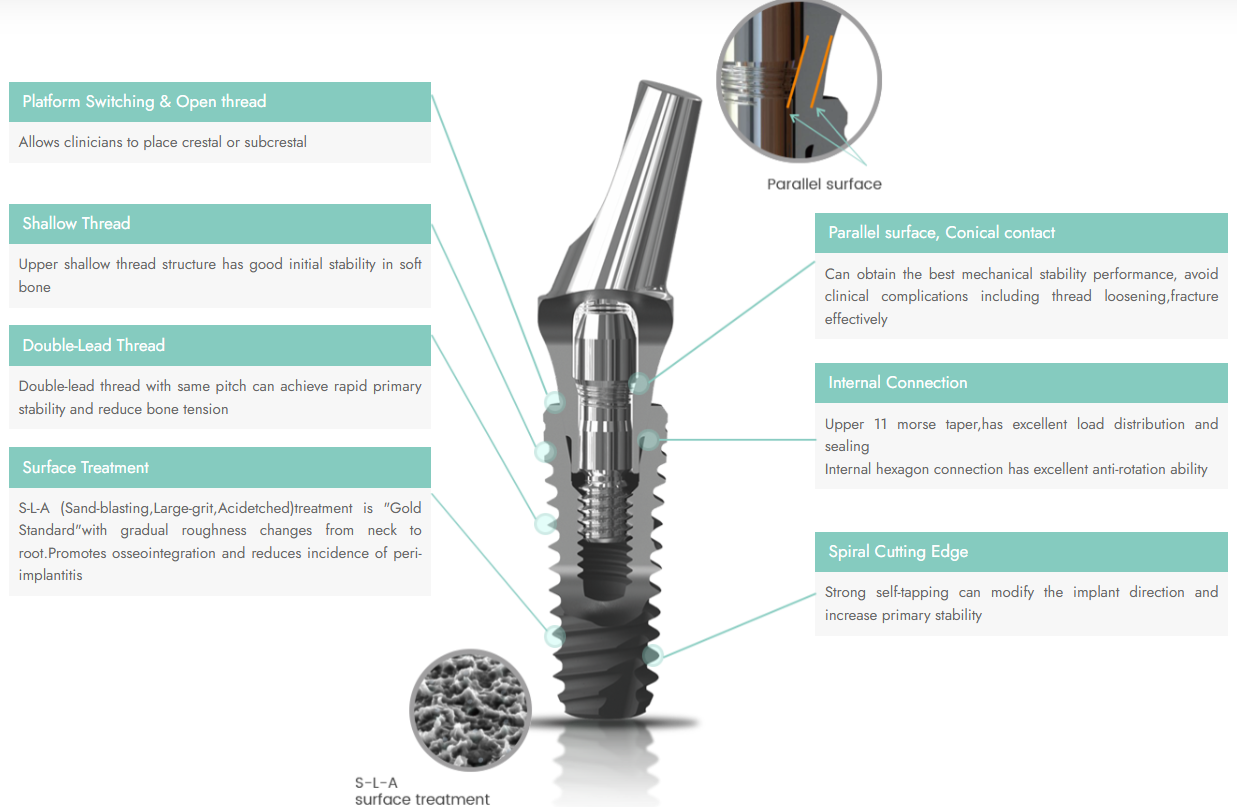

BV Key Design Features
- Internal Hex Connection
- Tapered Body
- 11° Morse Taper

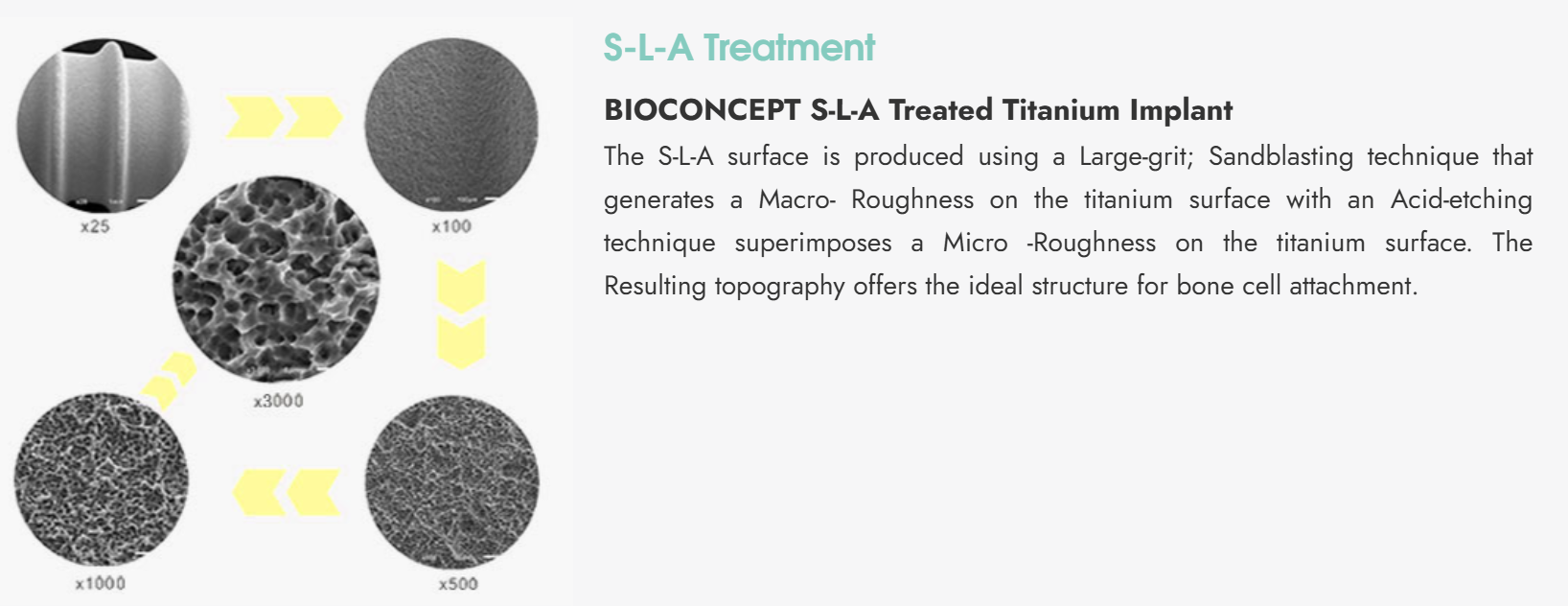

- S-L-A Surface
- Pure Titanium Grade 4
- Snap-In Transfer Mount
Patented Carrier Design
Cover Screw Provided
Double Deck Sterile Packaging

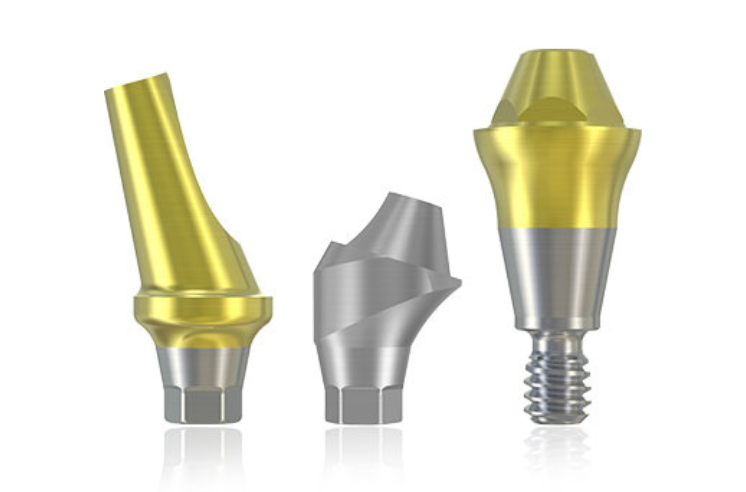

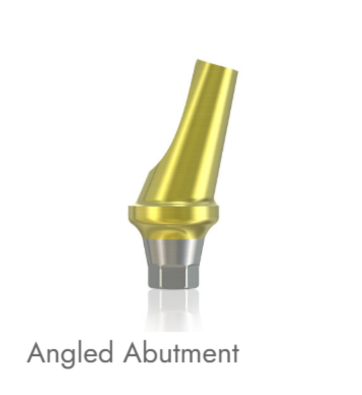

We offer a wide variety of abutments tailored with cutting-edge manufacturing techniques. The abutment lineup includes:
Screw Retained Restoration for Multiple Tooth Loss
Especially for Full Arch Restoration

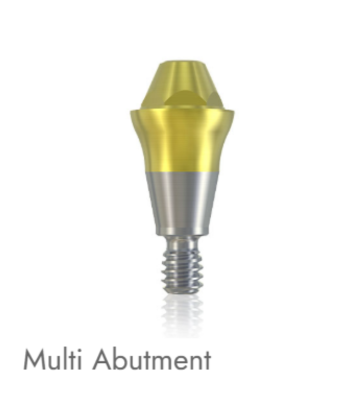

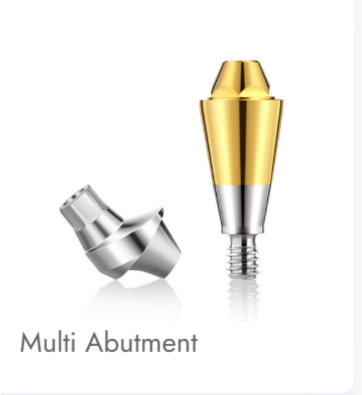

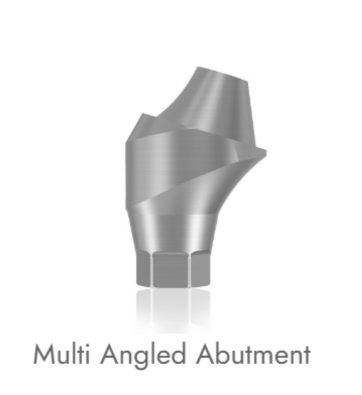

Multi-unit Abutments simplify surgical procedures and broaden dental implant indications. They offer various angulations, accommodating unique anatomical features of each patient, especially for patients with alveolar bone deficiency. This versatility enhances the precision of dental implant placement.
Best Solution for Aesthetics and Long-term Stability
Highest Accuracy Guaranteed

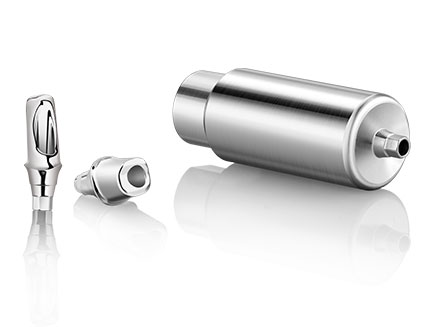

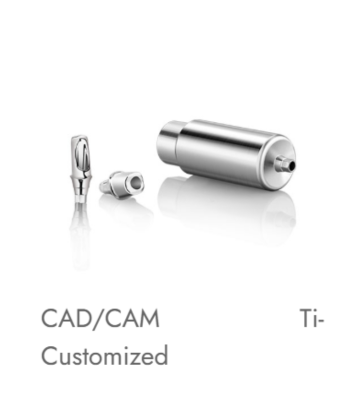

CAD/CAM Ti-Customized abutments contribute to improved aesthetics by enabling the customization of the emergence profile. This helps in achieving a natural and harmonious appearance of the final restoration. A single CAD/CAM abutment can be used for various cases. This simplification reduces the complexity of inventory management and procedural planning.
Ideal Full Overdenture Solution
Smallest Attachment for Better Aesthetic Effect

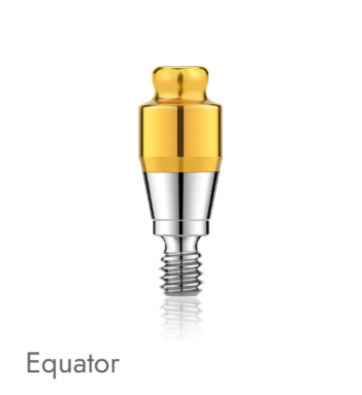

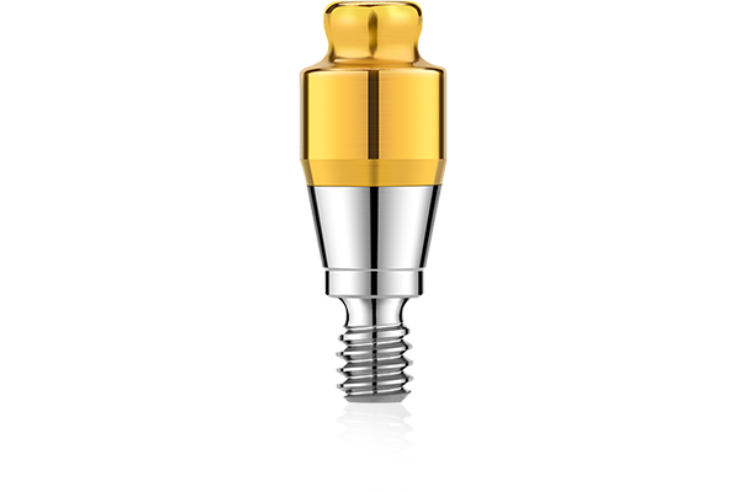

Our Equator Abutments are the low profile titanium implant abutment. Gingival heights available from 1 mm up to 6 mm. The retentive caps allows for correction of implant divergency up to 50°.

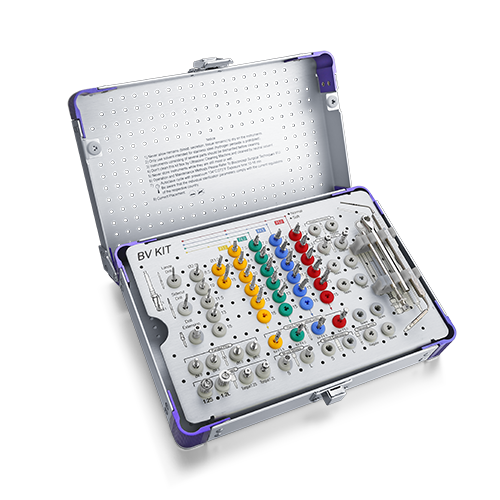

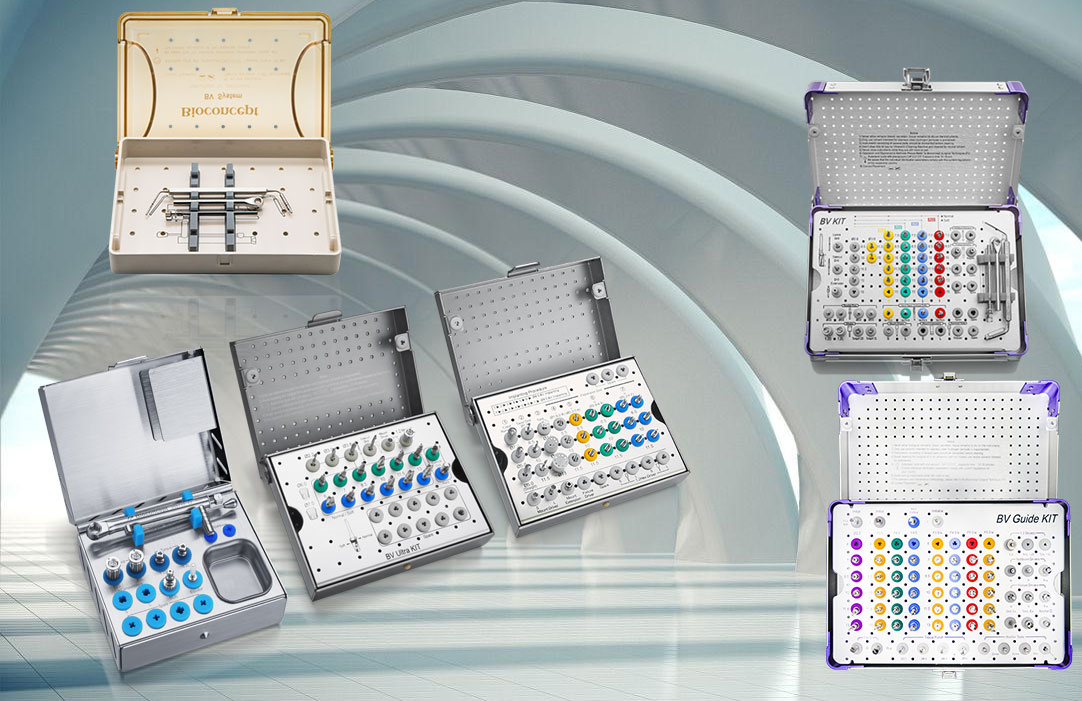

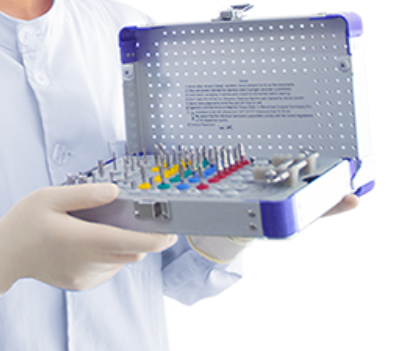

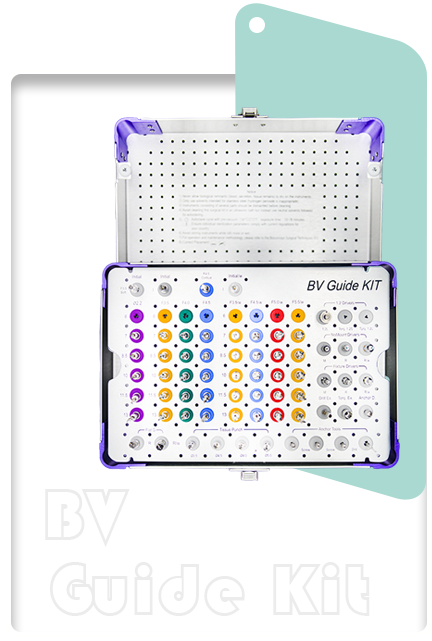

We offer dentists with our cutting-edge Dental Implant Surgical Kits, meticulously designed to revolutionize your implantation procedures, including BV Standard Surgical Kit, Ultra Kit, Bone Expander Kit, Prosthetic Kit, Mini Kit and Guide Kit. Crafted with precision and durability, our various BV Kits ensures efficient experience for both practitioners and patients.
Each instrument in the kit is crafted with utmost precision, guaranteeing accuracy during implantation procedures.
Sequentially arranged instruments for a logical and efficient surgical process can simplify procedures and optimize workflow.

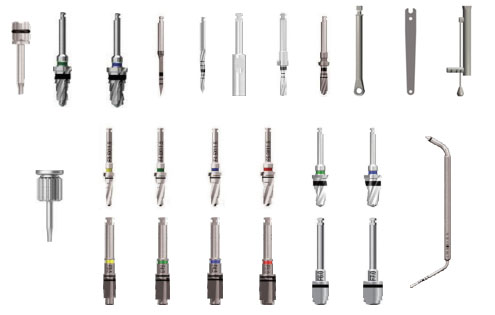

A comprehensive range of tools, from implant pilot drills, twist drills, drivers to depth gauges, etc., ensure you have everything you need in one place.
High-quality instruments with lasting performance are designed and manufactured to withstand rigorous use, ensuring longevity and reliability in your practice.

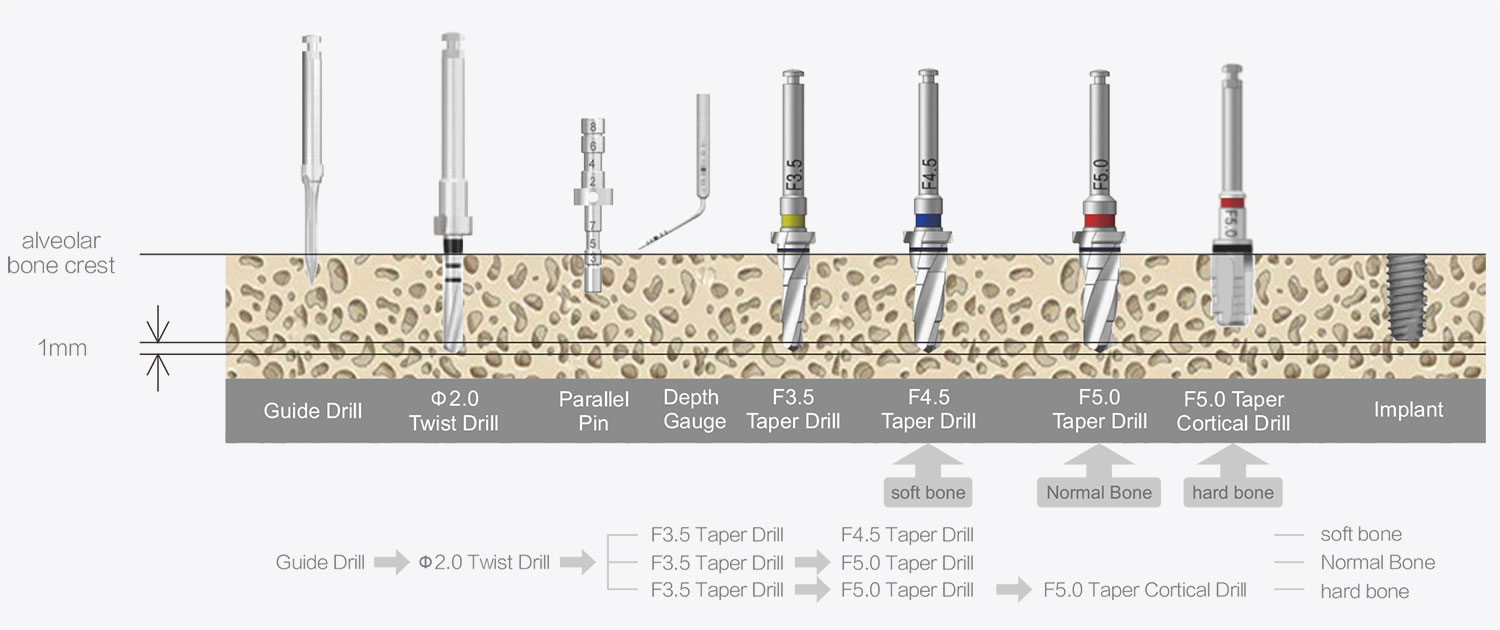

1. Locating: Use guide drill with 1500 rpm
• Pierce cortex to locate. Ideal rotate speed: 1500rpm
2. Orientating: Use Φ2.0 Twist Drill with 1000rpm
• Drill to 5mm, feel bone quality, use parallel pin to verify the direction. Sidecut drill can be used for changing direction.
• Drill until stop ring.
• Use depth gauge to detect hole's depth and bottom condition.
3. Reaming: Use Φ3.0 Twist Drill,Taper Drill, Taper Cortical Drill with 1000rpm
• Normal Bone (D2-D3): Use taper drill of equal diameter and length as the implant's.
• Soft bone (D4): Use smaller diameter taper drill.
• Hard Bone (D1)： Use taper cortical drill specifically designed.
4. Implanting: turn clockwise up to a maximum of 25rpm
• Implant by hand when there's 1 to 2 thread left.
• Implanting depth should be the same as bone plane or under bone for 0.5-1mm.
• Torque should be controlled between 25~40Ncm.
Digital Solutions Features
Digital dentistry not only enhances the efficiency and precision of dental procedures but also improves patient experience and accessibility to quality dental care. Ossmooth offers various digital tools and products to further provide innovative solutions for digital implantation. Ossmooth digital solutions cover the process from data collecting, surgical planning, implant placement, impression taking, abutment design to crown design, offering dentists, lab technicians and patients with premium products, high efficiency and flexible options.
